Mini Vertical Gel Electrophoresis Equipment Protein Electrophoresis Cell

Vertical Gel Electrophoresis Equipment JY-SCZ6+ Mini-Protean Electrophoresis Cell

Technical specifications

Glass plate size(W×L):200×200 mm

Gel Size(W×L):162×175 mm

Gel thickness: 1.5 mm

Number of Gels:1～2 pcs

Number of Samples:21~70

Buffer Volume:～4000ml

Dimension(L×W×H):295×170×279mm

Net weight:7.1kg

Characteristic feature

• With the gel making device of normal position,don’t should to moving the glass plate from the process of making gel to electrophoresis, convenient for observation the gel preparation from the glass on both sides, ensures fast set up times and leak-free operation.

• Safety cover open button design, convenient opening the cover；

• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.

• Auto-switch-off when the lid is removed.

vertical electrophoresis apparatus

mini gel electrophoresis system

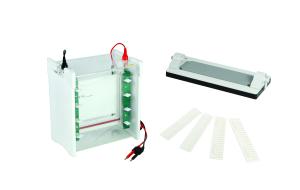

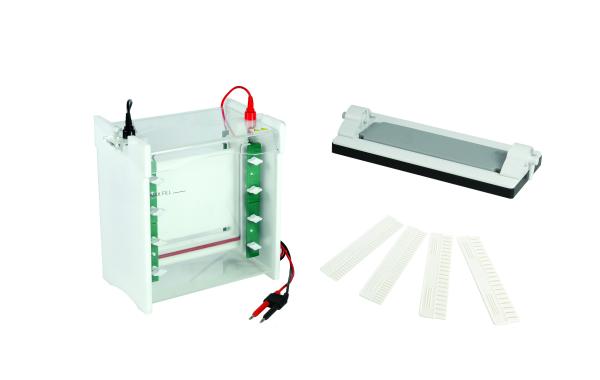

Mini Vertical Gel Electrophoresis Equipment Protein Electrophoresis Cell Images
